EV Immobilizer Plugs
Simulates charging to safely immobilize electric vehicle systems
EV Immobilizer Plugs
Simulates charging to safely immobilize electric vehicle systems
Key Applications and Deployment Scenarios
Immobilizer plug designed for responders and technicians during EV emergencies, maintenance, or recovery operations.
| Plug Type | Application |
|---|---|

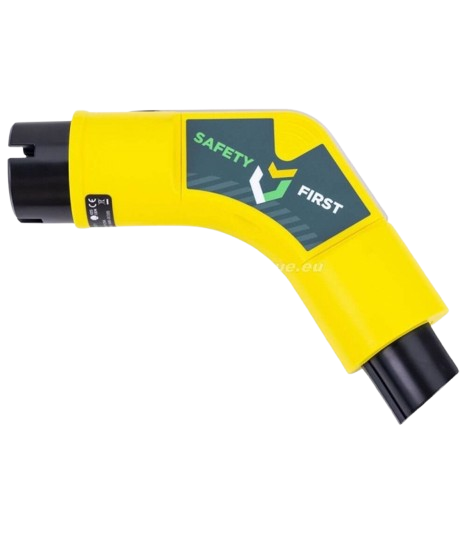

| Emergency Plug | Simulates charging to instantly immobilize EVs during emergency response, ensuring responder safety. |

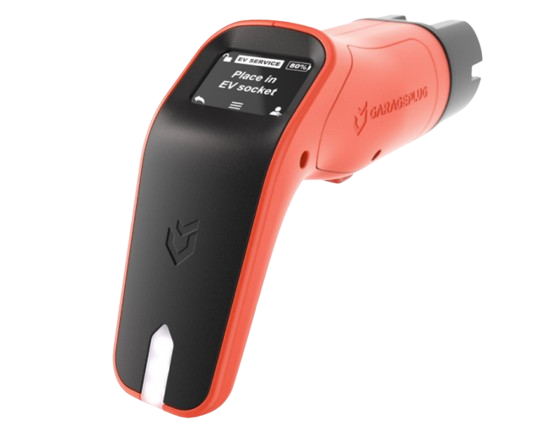

| Garage Plug | A maintenance‑grade immobilizer that safely disables EV propulsion during servicing, enhancing technician security. |
This universal plug simulates charging to activate EV safety protocols, preventing movement during emergencies or service. Compatible with Type 1 & 2 ports, it features indicators, self-test, and intuitive use.
How to Use

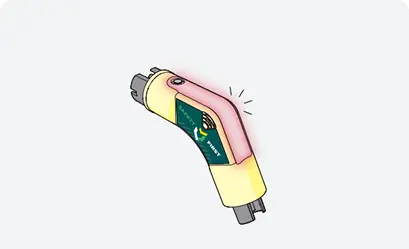

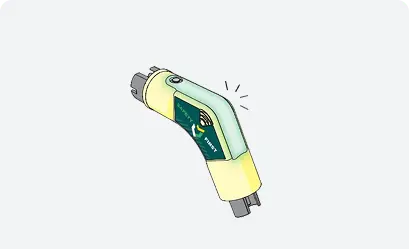

Power on and self-test
Press the power button to activate the Emergency Plug. The LED will cycle through colors during the self-test. Wait for a steady green light—this confirms the plug is ready to use.

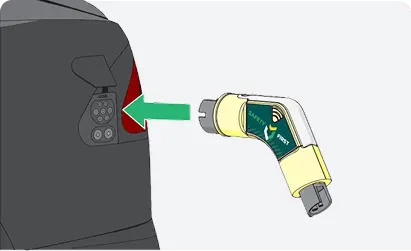

Insert into vehicle’s charge port
Open the EV’s charging port (use the included pry tool if needed) and firmly insert the plug until it locks. The LED should turn blue within 5s, indicating the vehicle is now immobilized (forced into Park/Neutral).
Power on and self-test
Once immobilized, apply wheel chocks as a safety measure. To remove, simply pull the plug out; the LED will flash red. Turn off the device by holding the power button until an orange flash appears.
Scan the QR code
For instructional videos
- Use only on parked EVs never on a moving vehicle.
- Check the LED before and after use to ensure proper operation.
Warning
Only use the Emergency Plug on a parked electric vehicle. Make sure the plug is working by checking the LED before and after use. Do not force it into the charge port, and never use it on a moving or damaged vehicle. Always follow safety steps to avoid injury or equipment damage.
